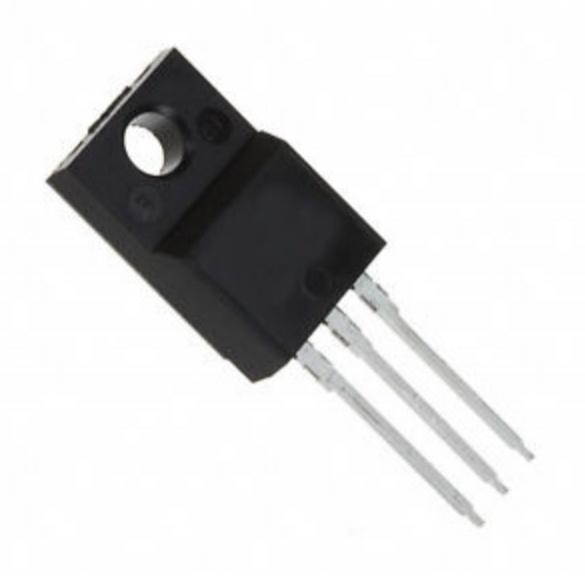

SPA11N65C3-INF, TR-N-FET 650V 7A 33W 0.33R(TO220F), TRANZISTORI, N-FET

Manufacturer: Infineon
Technology: Si
Mounting Style: Through Hole
Package/Case: TO-220FP-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 650 V
Id - Continuous Drain Current: 11 A
Rds On - Drain-Source Resistance: 380 mOhms
Vgs - Gate-Source Voltage: 20 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Channel Mode: Enhancement
Tradename: CoolMOS
Brand: Infineon Technologies
Configuration: Single
Fall Time: 5 ns
Height: 16.15 mm
Length: 10.65 mm
Pd - Power Dissipation: 33 W
Rise Time: 5 ns
Series: CoolMOS C3
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 44 ns
Typical Turn-On Delay Time: 10 ns
Width: 4.85 mm

Šifra: 118139

Količina: 2

Kataloški brojevi:

Zamjena: MDF11N65BTH(TO220F)
