REL-RY211012-TE, RELAY 12V MINI SPDT 8A/250VAC, 12VDC 1KONT.(SPDT), RELAY MINI

Manufacturer TE Connectivity
Relay type electromagnetic
Contacts configuration  SPDT
Rated coil voltage 12V DC
AC contacts rating
(at resistance load) 8 A / 250 VAC
DC contacts rating
(at resistance load) 8 A / 30 VDC
Contact current max. 8A
Switched voltage max 250V AC, max 300V DC
Relay variant miniature
Mounting PCB
Coil resistance 620Ω
Operate time 7ms
Body dimensions 28.5 x 10.1 x 12.3mm
Release time 3ms
Coil power consumption 220mW
Mechanical durability 30000000cycles
Operating temperature -40...85°C
Weight 18g
Relay series RYII
Switching capacity 2000VA
Contact material AgNi
Terminal pitch 3.2mm
Coil current 19.16mA
Enclosure description Standard seal

Šifra: 115005

Količina: 3

Kataloški brojevi: RY211012, 4-1393224-6

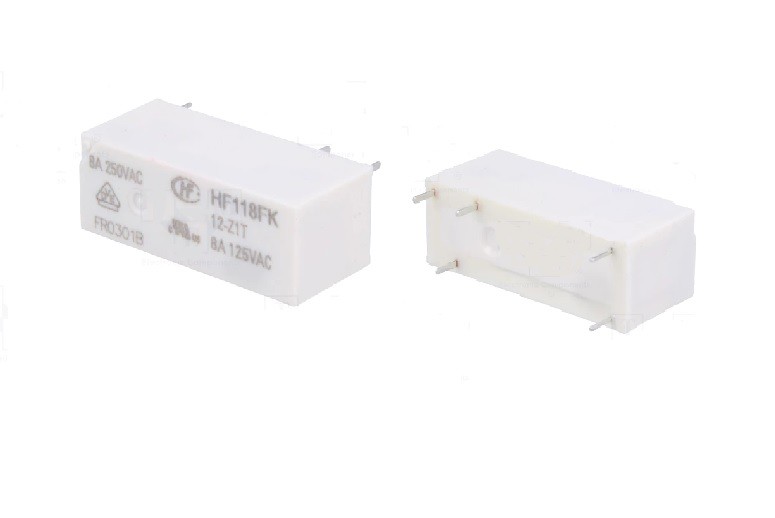

Zamjena: REL-HF118FK-012-HONGFA, REL-JS12N-K-FUJITSU, REL-RM96-1021-35-1012, REL-F4341-12C-FINDER
