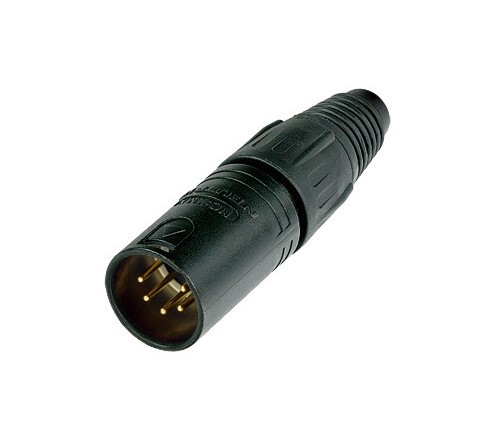

NTR-NC5MXB, 5p XLR MUŠKI KONEKTOR-NEUTRIK CRNI, XLR, NEUTRIK

Product
Title NC5MX-B
Connection Type XLR
Gender male

Electrical
Capacitance between contacts ≤ 7 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 7,5 A
Rated voltage < 50 V

Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.0 mm²
Wiresize max. 18 AWG
Wiring Solder contacts
Locking device Latch lock

Material
Boot Polyurethan
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 66)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Strain relief Polyacetal (POM)

Environmental
Approvals UL
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Šifra: 114773

Količina: 0

Kataloški brojevi:

Zamjena: XLR-5M-CLIFF, NTR-NC5MXX
