LCR METAR-VC6243-VIKTOR, KAPACITET-INDUKTIVITET METAR, INSTRUMENTI, KAPACITET-INDUKTIVIT

The meter is a stable multimeter with 3 2/1 LCD display, It uses the LCD with 26mm high make the reading clearly .unit symbol displaying. The meter is used to measure inductance and capacitance .It takes dual-integral A/D convert as key point. Using large scale integrated circuit .It's an ideal tool for lab, factory and family.

Specifications:

Condition: 100% Brand New
Material: Plastic
Displaying: LCD displaying.
Max. displaying: 1999（3 1/2 digit）auto polarity indication.
Measuring method: dual slope A/D conversion.
Sampling rate: approx. 3 times/second.
Over range indication: the MSD displays"1".
Operation environment: （0-40）℃,R.H.<80% .
Power: 9V * 1（NEDA1604/6F22 or equivalent model) (Battery not included)
Accessory: operation manual, holster, gift box, test leads, and battery.
Accuracy:±(a% x rdg+d)
Temperature:(23±5)℃,R.H.<75%,one year guaranteed from the production date.
Inductance(L):
RANGE ACCURACY RESOLUTION MEASURE FREQUENCY THROUGH CURRENT 2mH ±(2.0%+5) 1uH 1KHz 150uA 20mH 10 uH 1KHz 150uA 200mH 100uH 1KHz 150uA 2H ±(5.0%+5) 1mH 1KHz 150uA 20H ±(5.0%+15) 10mH 100Hz 15uA uH=10-6H   mH=10-3H
CAPACITANCE(C):
PF=10-12F  nF=10-9F  uF=10-6F

Šifra: 122289

Količina: 0

Kataloški brojevi: VC6243

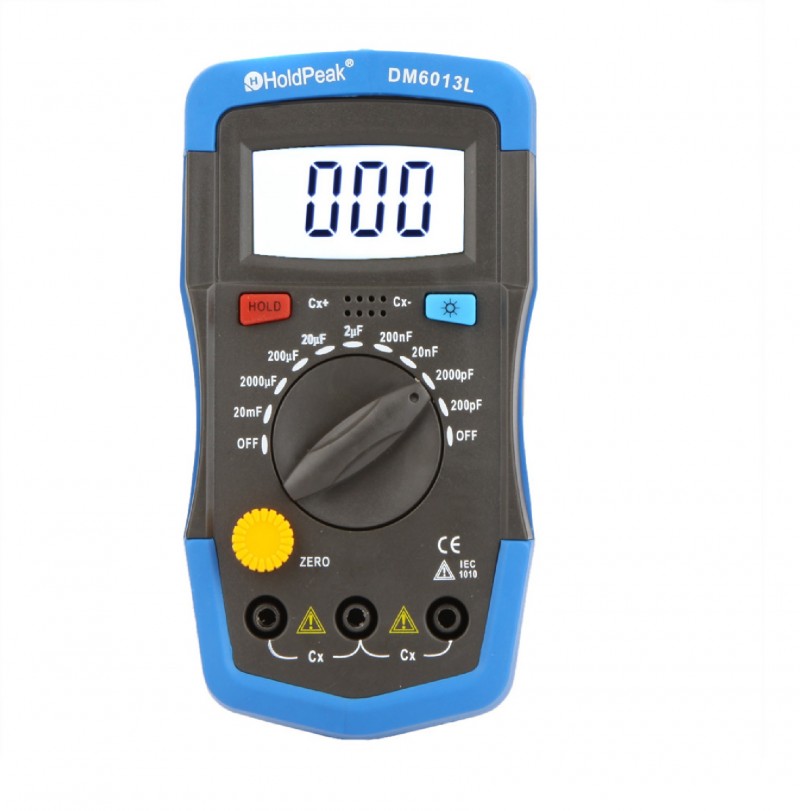

Zamjena: INSTRUMENT-MY6243-MASTECH, INSTRUMENT-DM6013L-HOLDPEAK
