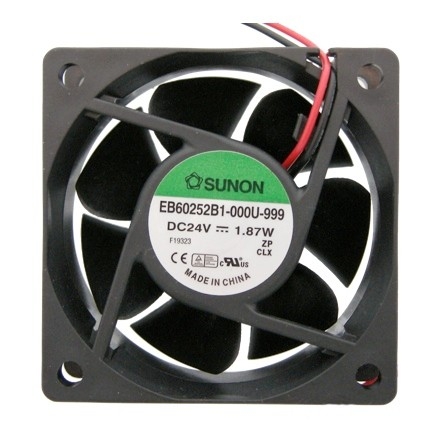

FAN60/24-EB60252B1-999-SUNON(C, FAN(60X25)24V 1,87W-KUGLIČNI, VENTILATOR 12V, 60X60X25-KUGLIČNI

Manufacturer SUNON
Fan type DC
Fan kind axial
Supply voltage 24V DC
Operating voltage 10...27.6V
Fan dimensions 60x60x25mm
Power consumption 1.87W
Rated current 0.078A
Fans efficiency 39.7m3/h
Noise level 34.5dBA
Bearing type ball bearing
Rotational rate/speed 4500 (±15%)rpm
Weight 56g
Current and power consumption tolerance ±15%
Min. insulation resistance 500MΩ
Fan material thermoplastic
Enclosure material thermoplastic
Insulation class E
Operating temperature -10...70°C
Leads 2 leads
Static pressure 5.33mm H2O
Cable length 300mm
Fan motor brushless DC motor
Flammability rating UL94V-0
Wire size 26AWG

Šifra: 111936

Količina: 0

Kataloški brojevi:

Zamjena: FAN60/24-BP602524L-03-BISONIC(CH), FAN60/24-EB60252B1-999-SUNON(CH), FAN60/24-MB60252VX-A99-SUNNON, FAN60/24-MF60252V3-A99-SUNON, FAN60/24-SP602524H-BISONIC(CH), FAN60/24-SP602524L-03-BISONIC, FAN60/24-SP602524L-03-BISONIC
