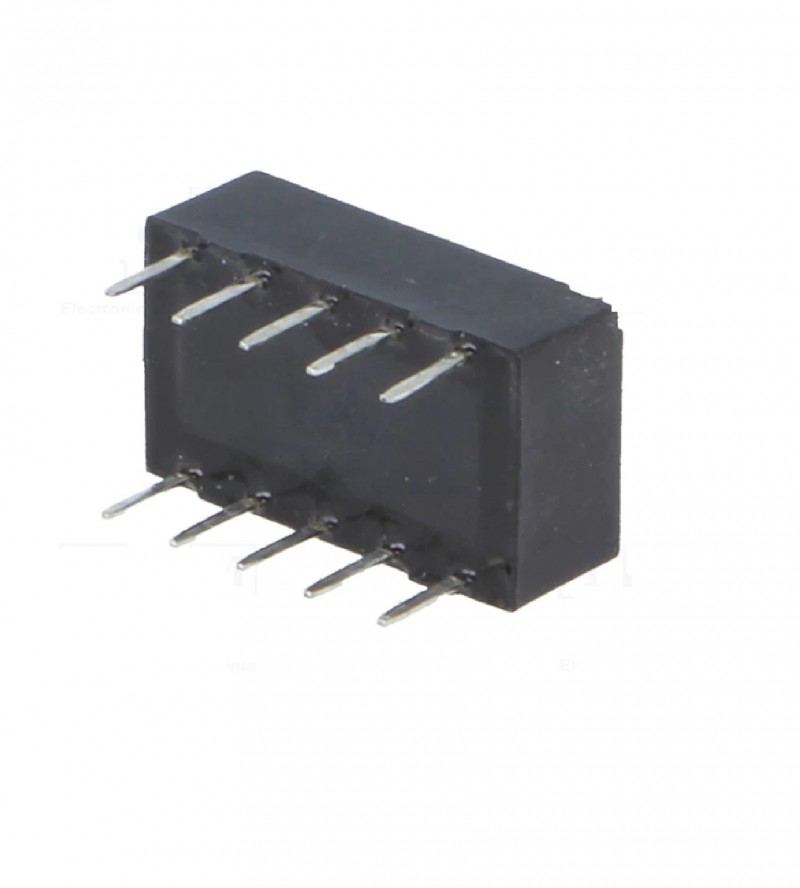

REL-LUZ24-RAYEX, RELAY SPDT 24VDC 3A/120VAC-3A/24VDC, , RELAY

Manufacturer Recoy/RAYEX ELECTRONICS
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V DC
Contact current max. 3A
AC contacts rating @R(at resistive load) 3A / 120V AC
DC contacts rating @R(at resistive load) 3A / 24V DC
Switched voltage max. 24V DC, max. 120V AC
Relay variant subminiature
Mounting THT
Coil resistance 2.88kΩ
Operate time 6ms
Body dimensions 15.5x10.5x11.5mm
Release time 3ms
Operating temperature -25...40°C
Relay series LU
Contact resistance 100mΩ
Contact material AgNi
Terminal pitch 2.54mm
Coil current 8.3mA

Šifra: 126319

Količina: 9

Kataloški brojevi: LUZ-24

Zamjena:
